Video Streaming for Flying Models


Below is a project I will soon begin.

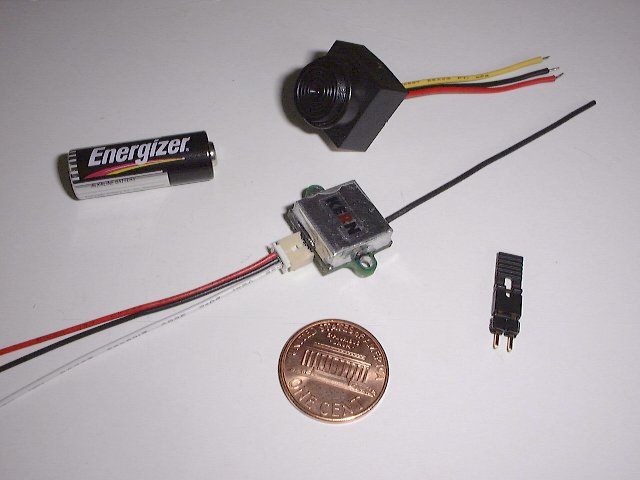

In the picture you can see the transmitter, color camera, battery and a switch plug.
Just to give you an idea of size comparison I've placed an American Cent in the picture :-)

Items used:
2,4 GHZ SMT SET #A500-88201
Camera (unknown brand)
Antenna D-8/2,4GHZ #C100-84010
9V Block Battery (not shown)
Here is where I purchased the items.

Below is a picture to simulate a snapshot with the camera placed on the side of the rocket.

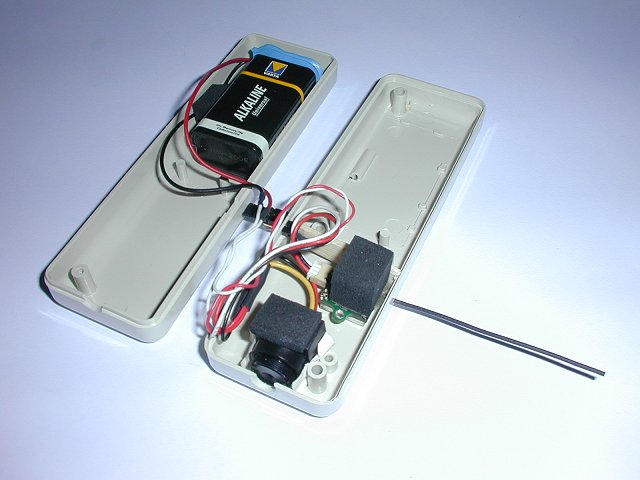

I've placed the transmitter and the camera in a battery casing. I'll use this configuration and place it under my ECO 8 flying helicopter. It should be interesting to see how the videos turn out.

Click here to view some video's taken with my ECO 8 Helicopter.
